【AR-2011-1/AR-2012-1】Round Barrel Handles  |Knob & Handle Locks

【AR-2011-1/AR-2012-1】Round Barrel Handles



Code 59-10

CTR 598







Model / Item No.: AR-2011/2012

Country of Origin: Taiwan

Product Specifications / Features:

 1. Material: zinc alloys (ZDC)

 2. Surface Treatment:

   (S) – silver polishing, chrome plating - silver,

   (B) – black electroplated black (order made),

   (G) – gold polishing, electroplated/ anodized gold and can prevent static electricity (order made),

   (F) – fume chrome electroplating – fume (order made)

 3. Particular, standard or other color of surface treatment can be negotiated.

 4. Purpose: electronic control box, cubicle and machinery door

 5. Remark:

   Used for doors, door range 70mm in thickness (500 x 300)

   Used locking rod (700 x 400)

 6. AR-2011-1-A Key Number: 92268 Cam= D2011-CT or D2012-C

 7. AR-2011-1-B Cam= D2011-CT or D2012-C

 8. A-2011-1-D, A-2011-1-DL, A-2011-1-DR

 9. The left-hand or right-hand use Cam= D2011-CT or D2012-C

10. Remark:

   Used for doors door range 70mm in thickness (350 x 200)

   Used locking rod (500 x 300)

11. AR-2012-1-A Key Number: 92268 Cam= D2011-CT or D2012-C

12. AR-2012-1-B Cam= D2011-CT or D2012-C

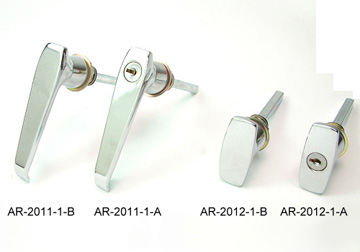

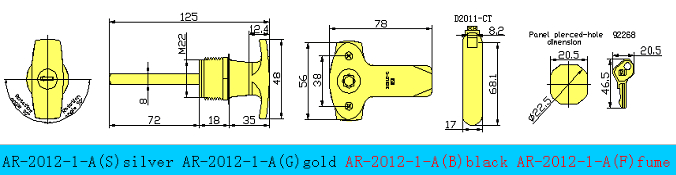

13. AR-2012-1-A

14. AR-2012-1-B

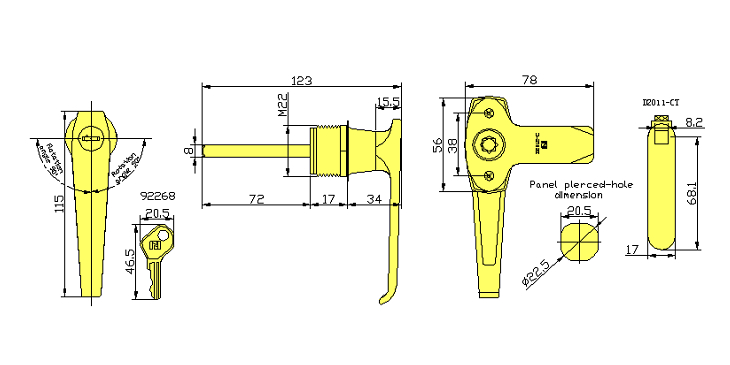

15. AR-2011-1-A

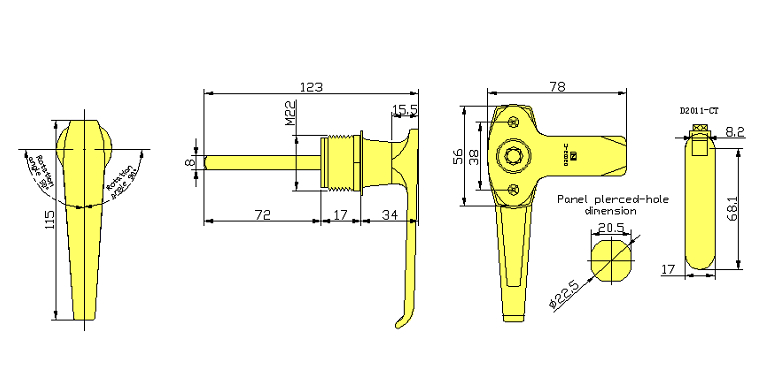

16. AR-2011-1-B



Primary Competitive Advantages:

Well and High Quality Control, Prompt Delivery, New Product, Competitive Prices, In a Variety of Design

Sales Method: Export, Manufacture, Retail

Payment Term: T/T, L/C at Sight
