【AP-505】Handle



Code 61-002

CTR 5126







Model/Item No.: AP-505

Country of Origin: Taiwan

Product Specifications/Features:

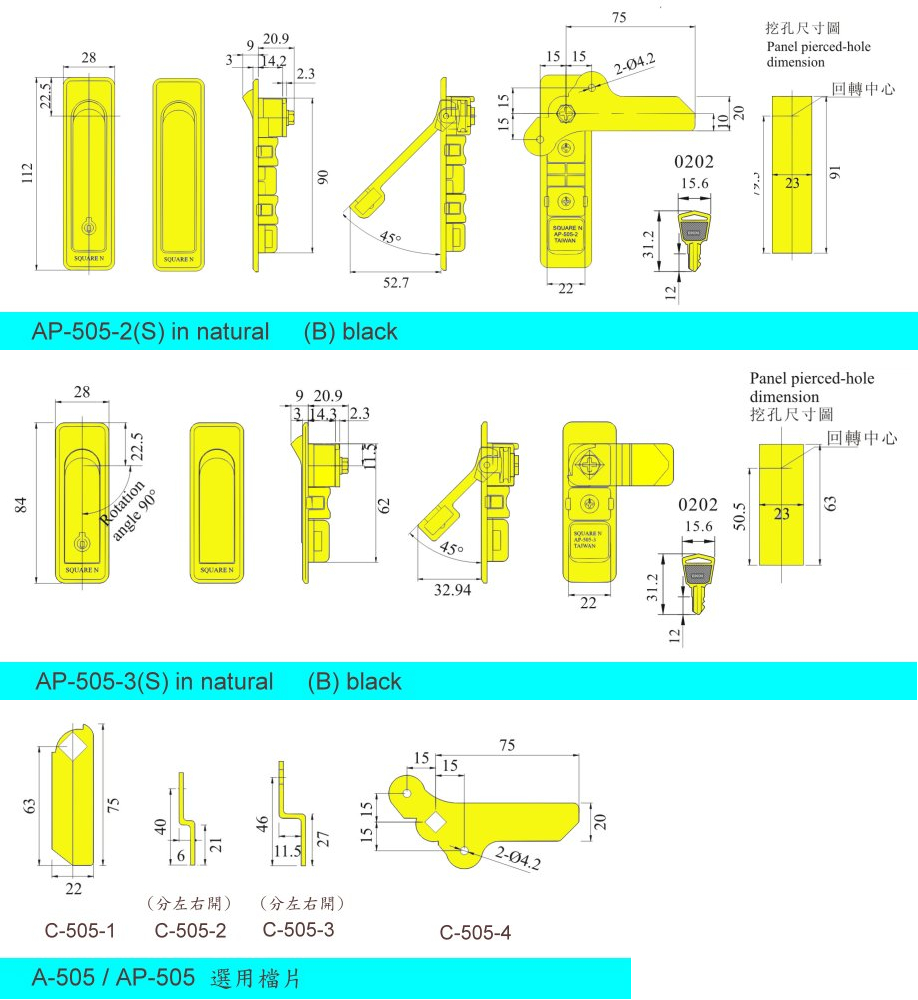

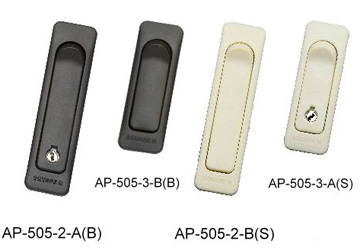

AP-505-2, AP-505-3, A-505-CAM

Material

  Body - PA6-GF30

  Spare part –Zinc alloy(ZDC) and Iron

Surface Treatment

  (S) In Natural

  (B) Black

Applicable panel thickness0.6 to 1.5mm

PurposeDistribution boardsControl boards .

Key No0202

Patnet NoTaiwanUtility model No.M312578

FeatureEasy to install.

  When you press the handle into the panel pierced-hole,

  the part of two sides will compression. The handle abuts

  against the door and then the part will return initial

  state and fix the handle from back. Tighten the screw

  firmly to complete the installation. The screw could

  adjusts according to the panel thickness.



Primary Competitive Advantages:

Well and High Quality Control, Prompt Delivery, New Product, Competitive Prices, In a Variety of Design

Sales Method: Export, Manufacture, Retail

Payment Term: T/T
